RCC Design
SKU: ART-EXL-RCC-004

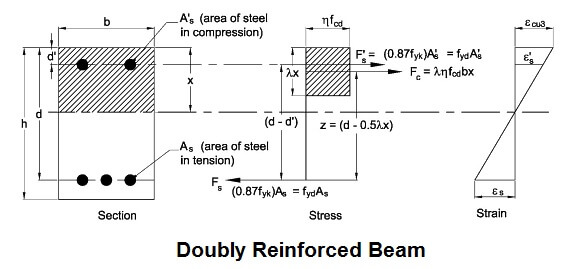

Professional Excel sheet for the flexural and shear design of doubly reinforced rectangular RCC beams in accordance with IS 456:2000. It calculates the required tension and compression reinforcement, verifies the provided reinforcement and designs vertical stirrups.

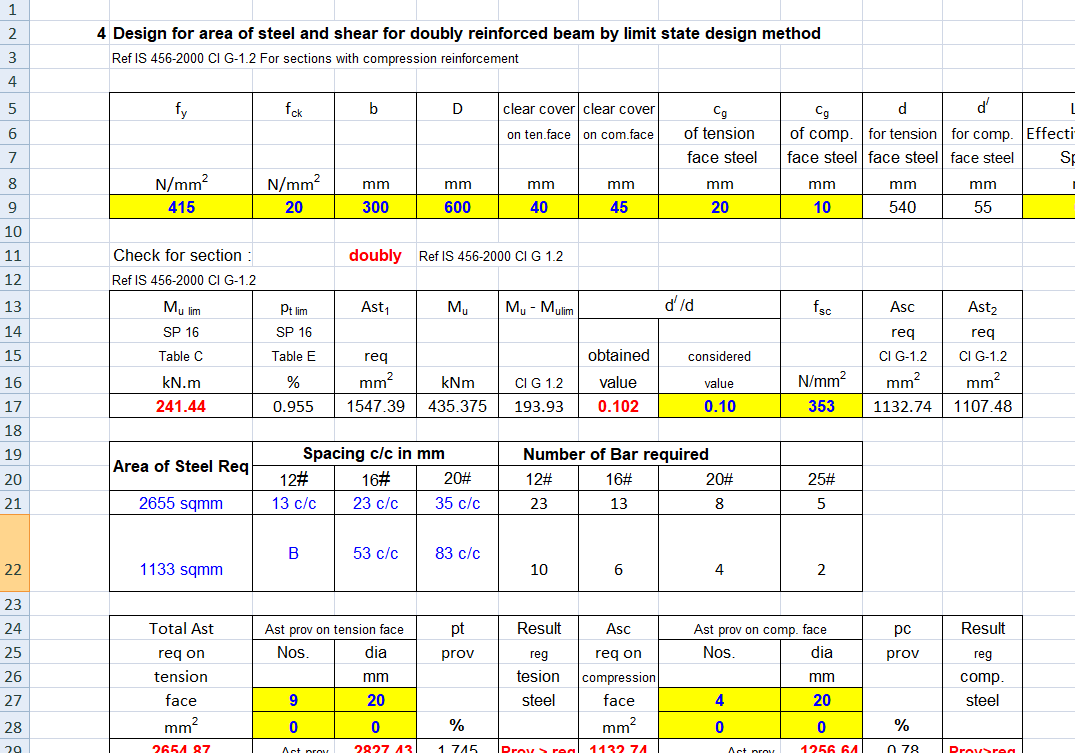

This Doubly Reinforced RCC Beam Design Excel Sheet provides a structured and efficient solution for the limit state design of rectangular reinforced concrete beams in accordance with IS 456:2000. The spreadsheet calculates beam self-weight, factored design load, ultimate bending moment and shear force from the entered beam geometry, material properties, effective span and imposed load. It automatically identifies the requirement for a doubly reinforced section and calculates the required tension and compression reinforcement. Users can enter the number and diameter of the provided reinforcement bars. The sheet calculates the provided steel area and reinforcement percentage and checks whether the selected reinforcement is adequate. The spreadsheet also performs the beam shear check by calculating the nominal shear stress, concrete shear strength and maximum permissible shear stress. Where shear reinforcement is required, it calculates and verifies the required vertical stirrup spacing. Suitable for structural engineers, civil engineers, consultants, students and engineering professionals who require a quick and transparent RCC beam design tool based on the Indian Standard.
